FiberTite® Crossgrip Roof Walkway System

FiberTite Crossgrip is a two-layer roof walkway matting that protects the roof membrane, provides safe access for general maintenance works and is compatible with various roof surfaces.

Made from non-porous PVC with cross-directional top ribs and a 'diamond cut' surface for a firm underfoot grip, Crossgrip carries a 0.6/0.5 slip-resistant rating under ASTM 1677.

Impermeable in all weather, Crossgrip is a highly specialized matting system for flat roofs, gantries and high-level walkways. When laid flat it will remain stable in winds up to 60 mph (96 km/h*).

Benefits

Features

  • Certified slip resistance DIN 51130:R10 ASTM 1677:1.0/0.9
  • Excellent drainage DIN 51130:V10
  • Roof membrane protection
  • Compatible with PVC/KEE roof membranes
  • Quick to install
  • Contours to the roof structure
  • Loose lay, no fixing required
  • Long Life
  • Diamond cut pattern
  • Two-layer construction
  • Durable one-piece construction
  • PVC construction
  • Supplied in 33' (10m) rolls
  • Made from flexible PVC
  • Stable in winds up to 60 mph (96 km/h*)



CRO0015_L

FTR Crossgrip is a loose laid roof walkway system designed for roofs with heavy maintenance traffic or extreme elements that make roof access challenging. FiberTite Crossgrip is an all-weather solution that can be repositioned, is self-draining, and is highly slip resistant. Proudly made in the United States, FiberTite currently stocks rolls of Gray Crossgrip 2' wide x 33' long (3' and 4' widths x 33' length sizes are available by special order).

FiberTite Crossgrip is a heavy-duty alternative to welded walkway systems and has gained "traction" in the industry.



FTR Crossgrip

Additional Roof Walkway & Protection Materials

We offer three distinct products to enhance roof traffic safety and optimize membrane protection in roof areas where frequent HVAC maintenance is required:

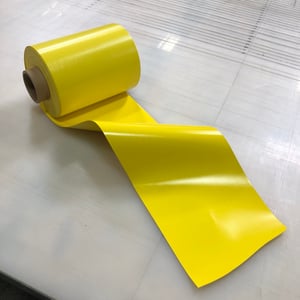

  • FiberTite Mellow Yellow roof walkways material offers a UV-stable yellow pigment and deep herring bone ribbed texture to improve footing on wet surfaces.

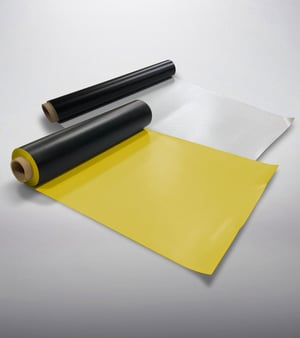

  • FiberTite Tuff-Trac features FiberTite XTreme membrane's 46 x 44/1000 x 1000 denier woven polyester fabric reinforcement. It is embossed with a low profile diamond plate design.
  • FiberTite Grey low-scope protection pads are manufactured from high grade vinyl and offer a deep herringbone ribbed embossed surface texture.

    Resources

  • CrossGrip Data Sheet
  • Walkway & Protection Data Sheet
  • FiberTite Roof Perimeter Caution Strip



*Tests at the University of Hertfordshire, School of Aerospace, Automotive & Design Engineering showed Crossgrip PVC When laid flat on a stable platform remained in position for wind speeds of 94 mph (150 km/h).
